在鋼鐵廠、水泥廠、多用于礦渣除鐵和保護輥壓機、立磨、破碎機等重要設備。
| 型號 |
適應帶寬 mm |
額定吊高 h mm |
磁場強度 ≥mT |
物料厚度 ≤mm |
勵磁功率 ≤KW |
驅機功率 ≤KW |
適應帶速 ≤m/s |
重量 kg |

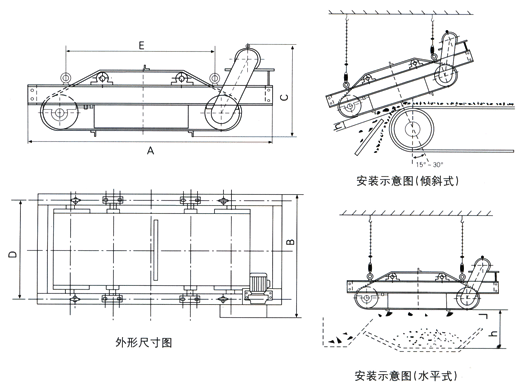

外型尺寸mm | ||||
| A | B | C | D | E | |||||||||
| RCDC-5 | 500 | 150 | 60 | 100 | 1.2 | 1.5 | 2.5 | 1080 | 2060 | 965 | 720 | 770 | 455 |
| RCDC-6 | 600 | 175 | 60 | 120 | 2 | 1.5 | 1350 | 2160 | 1170 | 810 | 1070 | 575 | |
| RCDC-6.5 | 650 | 200 | 70 | 150 | 3 | 2.2 | 1530 | 2380 | 1370 | 820 | 888 | 650 | |
| RCDC-8 | 800 | 250 | 70 | 200 | 4 | 2.2 | 2100 | 2340 | 1420 | 860 | 923 | 800 | |
| RCDC-10 | 1000 | 300 | 70 | 250 | 6 | 3.0 | 3380 | 2810 | 1700 | 880 | 1180 | 1450 | |
| RCDC-12 | 1200 | 350 | 70 | 300 | 8 | 4.0 | 4150 | 3000 | 1850 | 850 | 1650 | 1500 | |
| RCDC-14 | 1400 | 400 | 70 | 350 | 12 | 4.0 | 5500 | 3280 | 2070 | 1020 | 1600 | 1410 | |
| RCDC-16 | 1600 | 450 | 70 | 400 | 15 | 5.5 | 6900 | 3600 | 2270 | 1050 | 1800 | 1500 | |
| RCDC-18 | 1800 | 500 | 70 | 450 | 20 | 7.5 | 8800 | 4280 | 2500 | 1160 | 2220 | 2850 | |
| RCDC-20 | 2000 | 550 | 70 | 500 | 26 | 7.5 | 10500 | 4600 | 2750 | 1300 | 2470 | 3100 | |
| RCDC-22 | 2200 | 600 | 70 | 550 | 32 | 7.5 | 12900 | 5100 | 3100 | 1600 | 2800 | 3450 | |
